We offer the best IGETALLOY grades optimized for a variety of applications, including endmills, drills, and reamers; that demand strength, toughness and wear-resistance of the cutting edges.

Stocked Grades

• Super ultra fine grained carbide "AF1"
• Ultra fine grained carbide "A1"
• Fine grained carbide "H1"
• General cemented carbide "EH10"

Other grades can be made-to-order.

Product Configurations

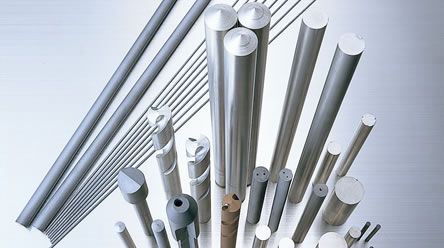

• Standard sintered rods
• Endmill blanks
• Drill blanks
• PCB drill blanks
• Rod blanks with oil-holes

Dimension of Standard Mill Scale Rod

• Outer diameter ø1.0 to 8.0mm (in increments of 0.5mm)
• Outer diameter ø9.0 to 20.0mm (in increments of 1mm)
• Length 50, 80, 100, or 310mm

An extensive lineup of stocked grades including the super ultra fine grained carbide "AF1" for molds.

Stocked Grades

• Super ultra fine grained carbide "AF1"
• Ultra fine grained carbide "A1"
• "KH Series" KH03/KH05

Other grades can be made-to-order.

Dimensions of Stocked Plates

• Length 100mm, width 60mm, thickness from 1.2 to 4.0mm
• Length 150mm, width 60mm, thickness from 2.0 to 10.0mm

The excellent edge integrity of ultra fine grained carbides exhibit superiority in cutting tape, fabric and paper.

Stocked Grades

• Super ultra fine grained carbide "AF1"
• Ultra fine grained carbide "A1"

Other grades can be made-to-order.

Cutting Edge Shapes (Typical)

• Double-edged
• Two-stepped
• Drilled blanks

Allowable Range for Manufacturing

• Min. thickness: 0.08mm, Max. length: 200mm (The straightness of thickness 0.08mm × length 200mm will be 0.1mm.)
